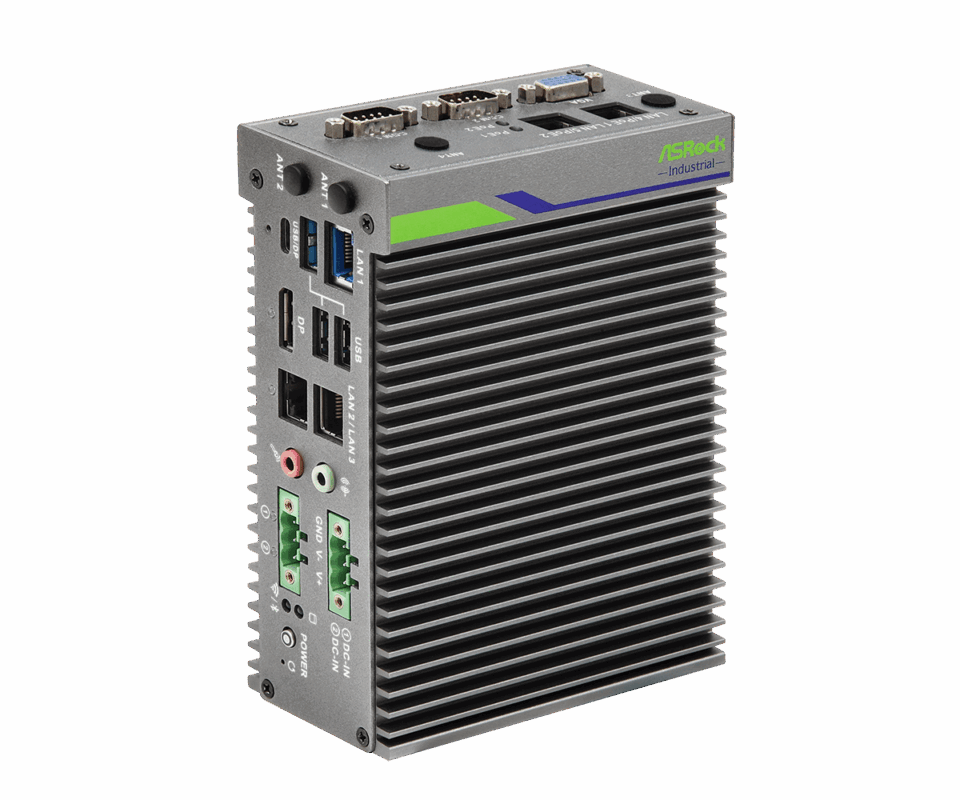

Industrial IoT Controller

iEP-5020G Series

  • Latest and Powerful Intel Atom® x7433RE Processor (Amston Lake)
  • Fan-less and Rugged Design
  • -40°C to 70°C Wide Operating Temp. for Basic/ 5LAN/ 8DIO SKU
  • -40°C to 50°C Wide Operating Temp. for PoE SKU
  • 6-36VDC Wide Range Power Inputs for Basic/ 5LAN/ 8DIO SKU
  • 19-36VDC Wide Range Power Inputs for PoE SKU
  • Most Flexible IOs and Expansion for Industrial Applications
  • Intel® TCC and TSN Support for Real-Time Computing
  • DIN Rail or Wall Mount Options
  • 4 x Intel 1G LAN (2 Support IEEE 802.3AF PoE Ports)
  • 1 x Intel 2.5G LAN
  • Support Intel® IN-Band ECC

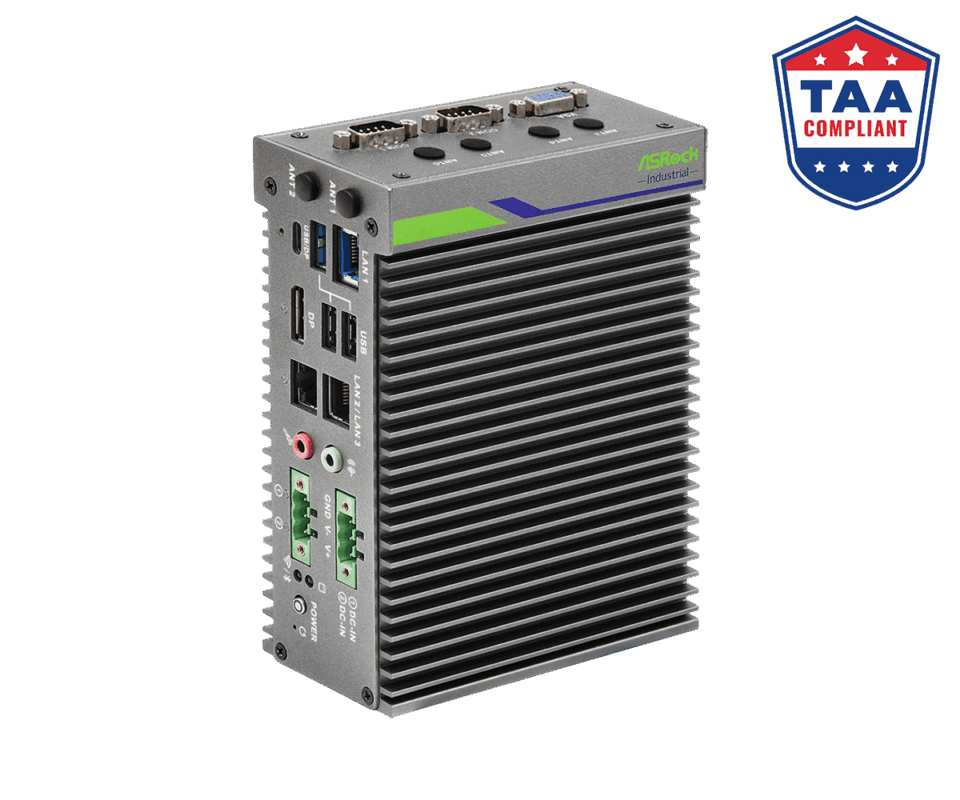

  • TAA Compliant
Get a Quote
Compare
Compare 0
Product Compare
Close
Overview
Specifications
Get a Quote

Processor System

CPU
Intel Atom® x7433RE, 4C, 1.5GHz, 9W
BIOS
AMI SPI 256 Mbit
Chipset
MCP

Memory

Technology
Single Channel DDR5 4800 MHz
Capacity
16GB
Socket
1 x 262-pin SO-DIMM

Graphics

Controller
Intel® UHD Graphicse

Expansion Slot

M.2
1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 Gen1x1 for 4G LTE/5G 1 x M.2 (Key E, 2230/2260) with PCIe Gen3x1 and USB 2.0 for Wireless/BT
RF& Antenna
6 x SMA connector hole reserved, support for Basic SKU 4 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU

Audio

Interface
Realtek ALC897, High Definiton Audio

Front I/O

Audio
1 x Mic-in 1 x Line-out
USB
2 x USB 3.2 Gen2 1 x USB 2.0 1 x Type-C USB3.2 Gen2
LED
1 x SATA / NVMe Storage LED 1 x Wi-Fi / BT LED
DC-IN
2 x 3-pin Phoenix type
Power Button
1 (with LED)

Rear I/O

SIM Card
1 x Nano SIM Card slot
Micro SD Card
1 x Micro SD card slot (SD Card specification version 3.01)

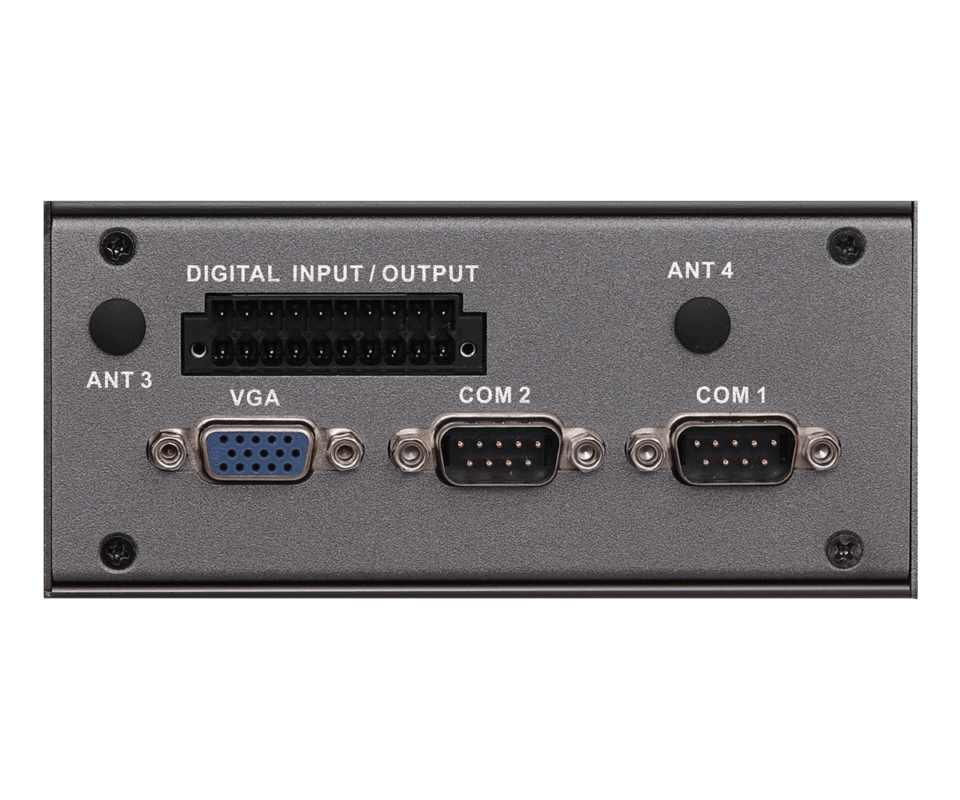

Top I/O

COM
2 x RS-232/422/485
Digital I/O
8DIs/8DOs with sink/source isolation 36V for 8DIO SKU
Ethernet
2 x 1G LAN for PoE/5LAN SKU
LED
2 x PoE LED

Storage

M.2
1 x M.2 (Key M, 2280) with PCIe Gen3x2

Watchdog Timer

Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec

Power Requirements

DC Input
For Basic/5LAN/8DIO SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection

Environment

Operating Temp
For Basic/5LAN/8DIO SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s
Storage Humidity
-40°C ~ 85°C (-40°F~185°F)
Humidity
~95% @ 40°C (non-condensing)
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
Shock
Operating 100 G, half sine 11 ms duration with SSD
ESD
Contact +/-8 KV, Air +/-15 KV
EMC
CE and FCC Class A (EN61000-6-4/-2)
Safety
LVD

Mechanical

Construction
Aluminum
Dimensions (L x W x H)
58 x 125 x 157 mm
Mounting (Option)
DIN-Rail , Wall Mount (By Request)
Net Weight
Basic SKU 1.25kg PoE SKU 1.39kg 5LAN-WIFI SKU 1.30kg 5LAN-5G SKU 1.30kg 8DIO SKU 1.35kg

Others

OS Support
Windows 11, Liunux
Packing List
3 x M2*2 Screw Package 1 x 3-pin phoenix connector 1 x System QIG
Optional Items
(1) 120W Power Adapter (2) Antenna/SMA Cable for support Wi-Fi module (3) Antenna/SMA Cable for support 4G LTE/5G module (4) DIN Rail Kit (5) Wall Mount Kit
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
