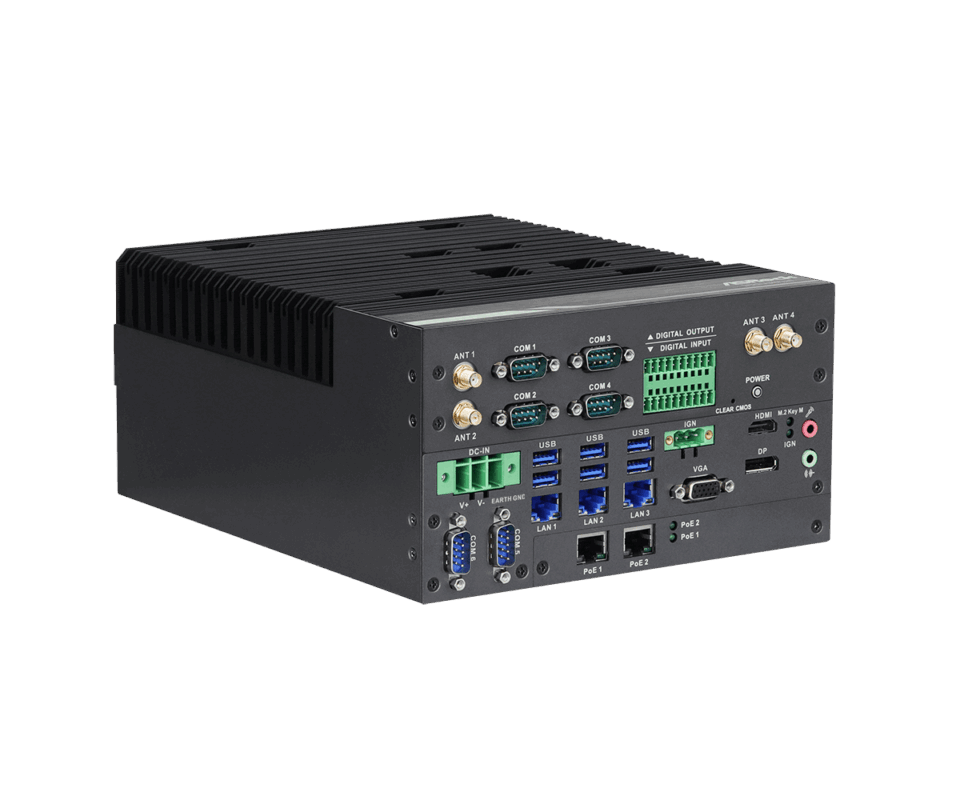

Asrock IndustrialCompact Edge AIoT PlatformiEP-9020E
iEP-9030E
iEP-9030E
iEP-9030E
iEP-9030E
iEP-9030E
iEP-9030E
Compact Edge AIoT Platform

iEP-9020E

  • Intel® 13th Gen Core™ Processors with R680E Chipset
  • 4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)
  • 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
  • 6 x USB 3.2 Gen2x1, 6 x C OM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
  • 5 x Intel 2.5G LAN (2 support PoE, LAN 1 supports vPro)
  • 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
  • Support Wireless Time-Sensitive Networking (WTSN)

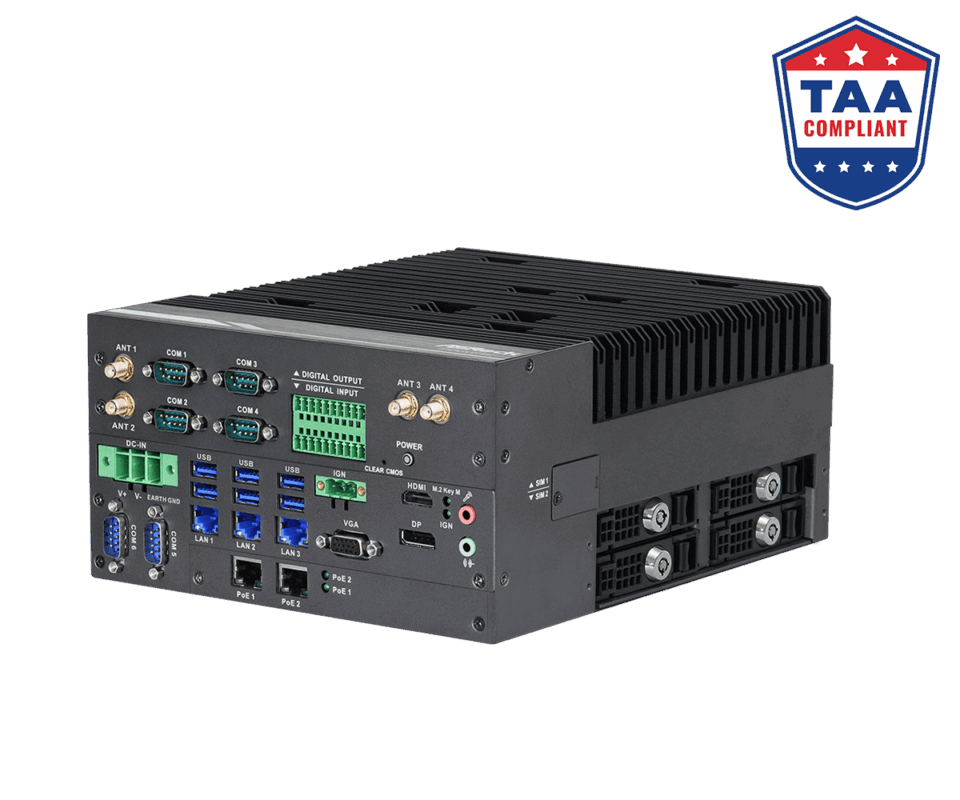

  • TAA Compliant
Get a Quote
Compare
Compare 0
Product Compare
Close
Overview
Specifications
Get a Quote

Processor System

CPU
Intel® 13th Gen Core™ Processors
Chipset
Intel® R680E
Socket
LGA 1700

Memory

Technology
Dual Channel DDR4 2933MHz (ECC memory supported by R680E + Selected CPU)
Capacity
128 GB (32 GB per DIMM)
Socket
4 x 260-pin SO-DIMM

Graphics

Controller
Intel® UHD Graphics
DisplayPort
DisplayPort 1.4a , DP++ Max resolution up to 4096x2160@60Hz
HDMI
HDMI 2.0b Max resolution up to 4096x2160@60Hz
VGA
Max resolution up to 1920x1200@60Hz

Expansion Slot

RF& Antenna
8 x SMA connector hole reserved
M.2
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module 1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 / USB3.2 Gen1x1 ofr 4G / 5G
SIM Socket
2 x Nano SIM Card slot (1 connected to Mini PCIe, 1 connected to M.2 Key B)

Audio

Interface
Realtek ALC897, High Definition Audio.

Ethernet

Controller/ Speed
5 x Intel 2.5G LAN(2 support PoE, each port supports IEEE 802.3AF PoE, PoE output max.15.4W/port), (LAN 1 supports vPro)
Connector
5 x RJ45

Front I/O

DisplayPort
1
HDMI
1
VGA
1
Ethernet
5 x 2.5G LAN
USB
6 x USB 3.2 Gen2x1, 1 x USB2.0 internal connector w/ lock function
Audio
1 x Mic-in, 1 x Line-out
COM
4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation Protection, COM5- Isolation Protection, COM6) 2 x RS232 (COM3, COM4)
DIO
8DIs/8DOs

Storage

M.2
1 x M.2 (Key M, 2280) with Gen4/Gen3 x4 for NVMe SSD
SATA
4 x SATA3 (6Gb/s), support RAID 0/1/5/10 Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order)
CFast
1 x Type II socket (Shared with SATA3)

Watchdog Timer

Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR
9V~36V VDC with Ignition control and remote power on/off switch. 80V Surge Protection, OVP, UVP, OCP and reverse protection Ignition Power Input w/ 13-mode condition

Environment

Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50G, half sine 11ms duration with SSD (More stringent than MIL-STD-810H)
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H)
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD

Mechanical

Construction
Aluminum heatsink + Metal chassis
Mounting
Desk Mount
Dimensions
201.7mm (W) x 244.8mm (D) x 109.5mm (H) (7.94" x 9.64" x 4.31")
Net Weight
6.5kg

Others

OS Support
Windows 10 & Linux
TPM
TPM 2.0
Real-Time Enablement
TSN, TCC support under YOCTO
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
