NTI GCS Dragonfly NR-8

Outline

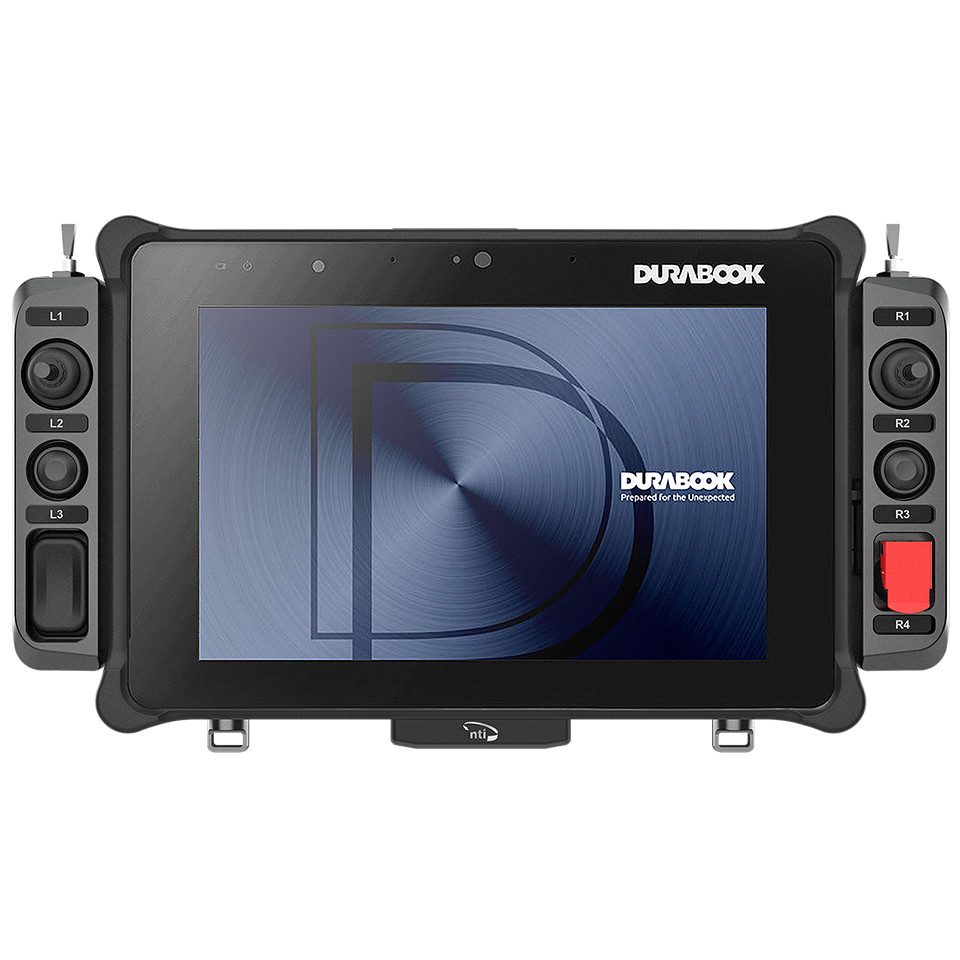

NTI GCS Dragonfly NR-8: Precision Control for Unmanned Systems

The NTI GCS Dragonfly NR-8 is a high-performance Ground Control System (GCS) designed for controlling unmanned aerial, ground, and surface vehicles. Built to withstand extreme field conditions, this GCS offers unparalleled durability, reliability, and flexibility for critical missions. With military-grade components and a rugged design, the NR-8 ensures operational success in the harshest environments.

Get a Quote

Key Features of GCS Dragonfly NR-8

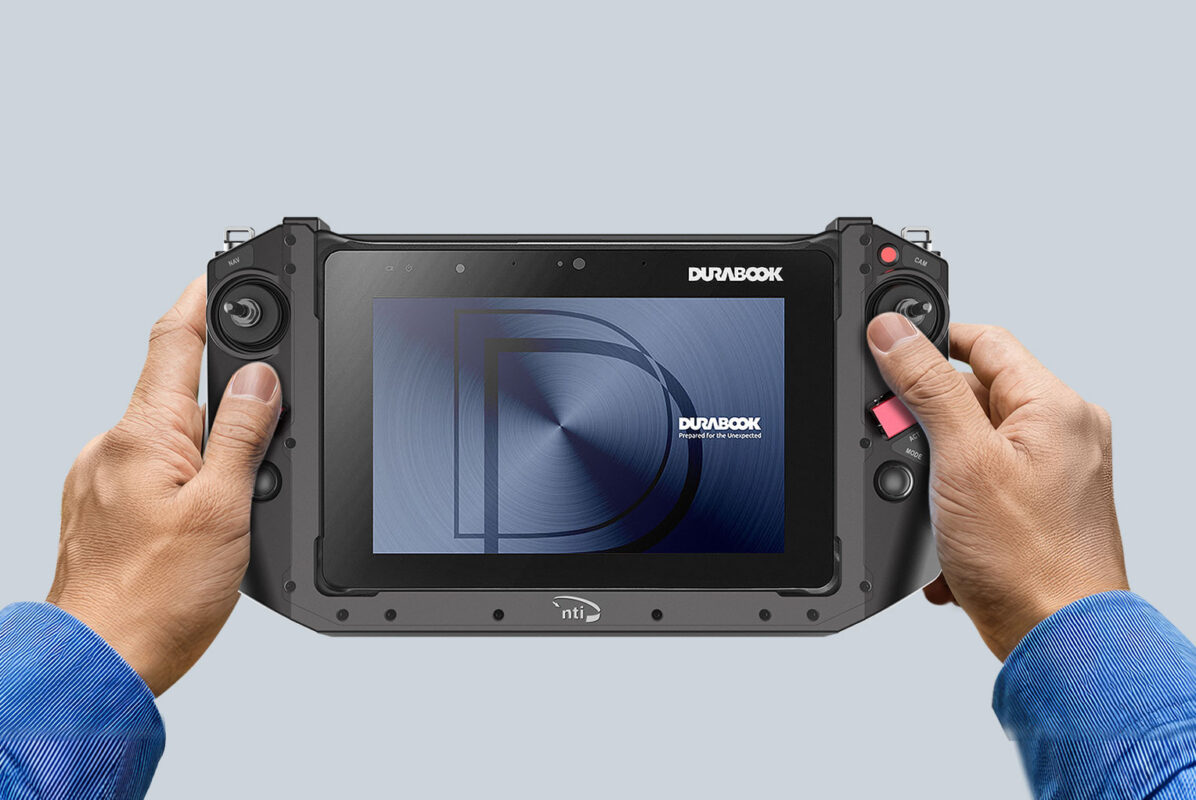

The NTI GCS Dragonfly NR-8 is built on a rugged Durabook tablet, providing unmatched durability in extreme field conditions. It features military-grade connectors for reliable communication and customizable interface options, including Ethernet, USB, and optional USB Type-C. The advanced control system ensures precise operation with highly reliable joysticks and buttons. Compatible with multiple unmanned systems like UAVs, UGVs, and USVs, the NR-8 offers versatile performance. Tested to meet military standards, it guarantees operational success in demanding environments.

Technical Specifications

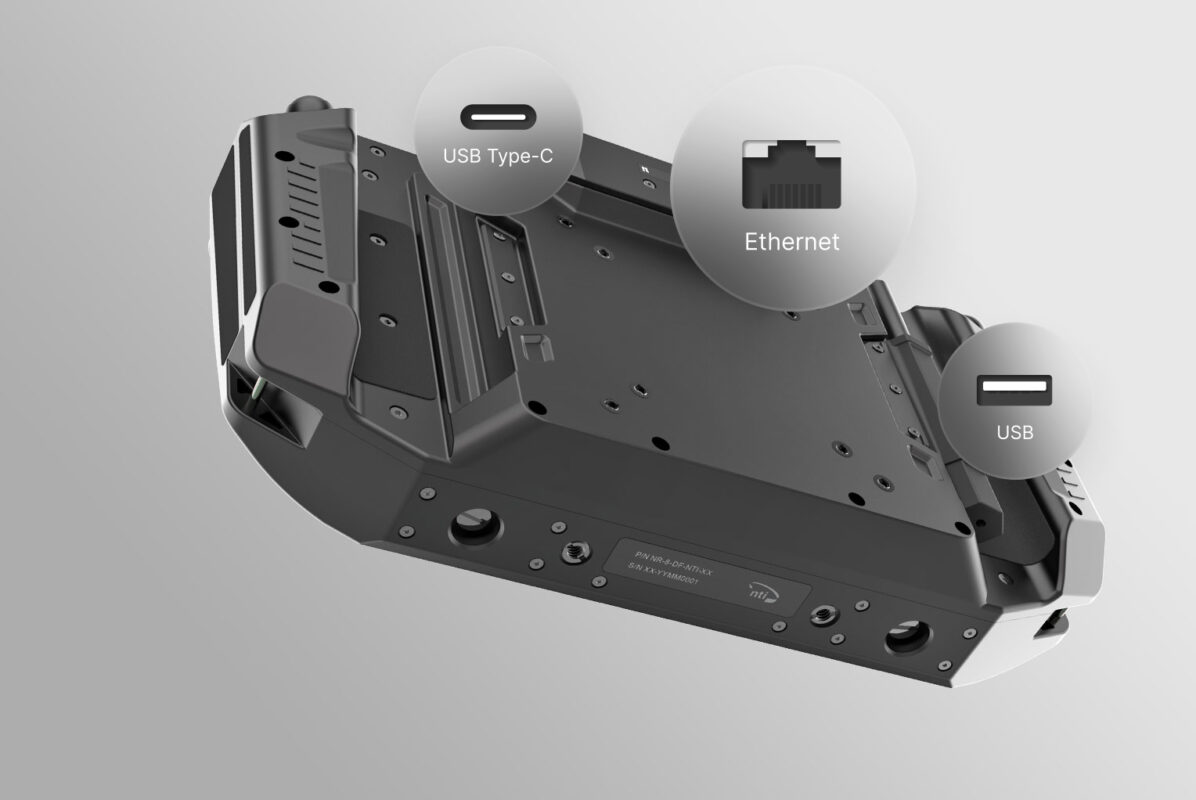

The NTI GCS Dragonfly NR-8 features Ethernet 10/100 ports (up to x2) and USB 2.0 ports (up to x2), with optional USB Type-C 3.2 outputs. Ability to integrate various DC-DC converters in the 10-75V range, providing flexibility for various power setups. The rugged Durabook tablet, which the GCS is built on, is MIL-STD-810H compliant, ensuring exceptional durability in extreme environments. Designed for seamless integration, it is compatible with multiple unmanned systems such as UAVs, UGVs, and USVs. The military-grade connectors and customizable interface options guarantee reliable and adaptable performance in demanding conditions.

Durability and Reliability

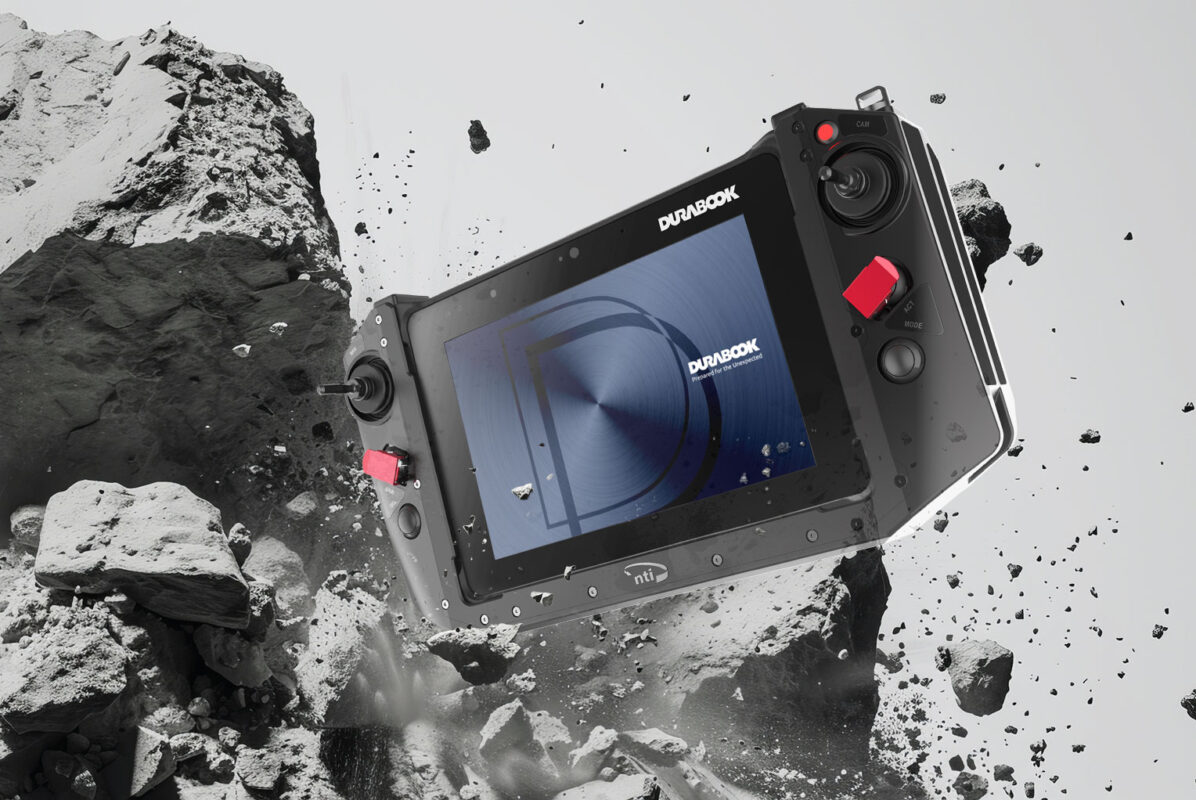

The GCS Dragonfly NR-8 is built for rugged environments, ensuring exceptional durability and reliability. The system is MIL-STD-810H compliant, providing resistance to extreme temperatures, shock, vibration, dust, and moisture. Its rugged Durabook tablet is designed to endure the toughest conditions, making it suitable for both military and industrial applications. The use of military-grade connectors ensures stable and reliable communication in harsh environments. Tested for field performance, the NR-8 guarantees uninterrupted operation in challenging scenarios, providing dependable control for unmanned systems in any mission.

Applications

The NTI GCS Dragonfly NR-8 is ideal for a wide range of unmanned system applications. It excels in military operations, providing reliable control for Unmanned Aerial Vehicles (UAVs), Unmanned Ground Vehicles (UGVs), and Unmanned Surface Vehicles (USVs). The system’s rugged design makes it suitable for industrial inspections, including oil and gas, mining, and infrastructure monitoring. Additionally, it is perfect for disaster response and search and rescue missions, offering dependable control in harsh and unpredictable environments. Its customizable features and durability make it a versatile tool for complex field operations.

Customization Options

The NTI GCS Dragonfly NR-8 offers extensive customization options to meet the specific needs of various unmanned system operations. Users can configure interface options with customizable Ethernet, USB, HDMI, and Type-C ports to ensure compatibility with different communication and control systems. Additionally, the system’s power options are flexible, supporting a voltage range of 10-50V. The rugged design can also be tailored with optional add-ons like specialized joysticks, buttons, or transceiver integration. This level of customization ensures that the NR-8 can adapt to unique mission requirements across multiple industries and environments.

Do you have any question?

Please feel free to reach out to us. We are ready to help you with your requirements.

Why NTI Electronics?

NTI Electronics designs rugged Ground Control Systems (GCS) like the NR-8 to meet the highest standards of reliability and precision. Our solutions are built to ensure mission success in the most demanding environments.

Military-Grade Durability

Built to withstand harsh environments, ensuring reliable performance under the most challenging conditions.

Customizable Interface Options

Configurable layouts and controls to adapt precisely to unique operational and mission requirements.

Advanced Connectivity

Equipped with multiple connectivity options for seamless integration with a wide range of unmanned systems and platforms.

Durabook Rugged specs

MIL-STD-810H certified

Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Salt Fog, 6′ drop 26 faces

MIL-STD-461G certified

Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility

IP 66 certified

Optional ANSI/UL 121201, Class I, Division 2

Tech specs

Controllers

2 Axis Hall Effect Joystick x 2
1 Axis Thumbwheel Hall Effect Switch x 2
Push Button x 4
Push Button with Protective Cover x 2
Optional: Control Switch (TC 5POS) x 1 (Instead of 1 unit of Joystick)
Optional: Toggle Switches

Interface Specifications

LAN 10/100
USB 2.0 x 2
Optional: LAN 1GBps
Optional: USB 3.0 x 1 (Instead USB 2.0 x 2)
Optional: USB 3.2 Type C x 1

Connectivity Specifications

BERNIER harsh environments connectors

J1 – Uniting all interfaces
Optional: J2 – Dedicated Power
Optional: J3 – USB TYPE-C (USB 3.2)

Operating voltage

19V (DC)

Optional: Built-in DC/DC Converter with customizable input voltage

Integrated Rugged Tablet

Durabook R8 Rugged Tablet
(upon customer’s spec)

Dimension & Weight

315 mm (L) x 177 mm (W) x 81 mm (H) 2.1 kg (with a tablet)

(Dimensions and weight may vary depending on configuration)

Warranty

2-year limited warranty standard
