Asrock IndustrialFanned Embedded BOX PC4X4 BOX-AI340
4X4 BOX-AI350
4X4 BOX-AI350
4X4 BOX-AI350
4X4 BOX-AI350
Fanned BOX

4X4 BOX-AI340

  • AMD Ryzen™ AI 300 Series
  • 2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
  • 2 x USB4, 1 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
  • 1 x Realtek Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.1, 2 x DP 1.4a (from Type C)
  • 19V Power Adapter
  • 117.5 x 110.0 x 49mm (4.63″ x 4.33″ x 1.93″), Fanned Barebone
Get a Quote
Compare
Compare 0
Product Compare
Close
Overview
Specifications
Get a Quote

Processor System

CPU
AMD Ryzen™ AI 300-Series
- 4X4 BOX-AI340 (AMD Ryzen™ AI 5 340, 6Cores, Max Speed up to 4.8GHz)
BIOS
AMI SPI 256 Mbit

Memory

Technology
Dual Channel DDR5 5600 MHz
Capacity
96GB (48 GB per DIMM) *Recommended: Use at least 16 GB memory module to enhance performance.
Socket
2 x 262-pin SO-DIMM

Graphics

Controller
AMD Radeon™ Graphics
HDMI
HDMI 2.1
Max resolution up to 7680x4320@60Hz
DisplayPort
DisplayPort 1.4a
Max resolution up to 4096x2160@60Hz
MultiDisplay
Max 4 display (Included 2 outputs from Type-C)

Expansion Slot

M.2
1 x Wi-Fi 6E 802.11ax + BT 5.2

Audio

Interface
Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector
2 x RJ-45

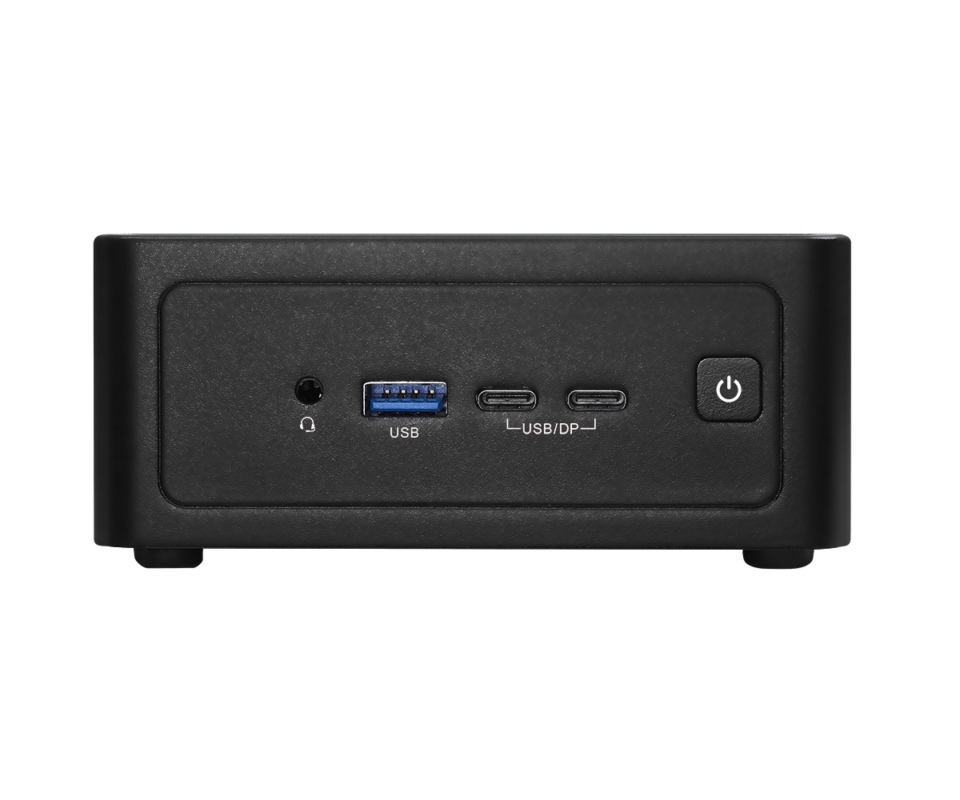

Front I/O

USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB4 (Supports DP1.4a display output)
Audio
1 (headphone & microphone jack)

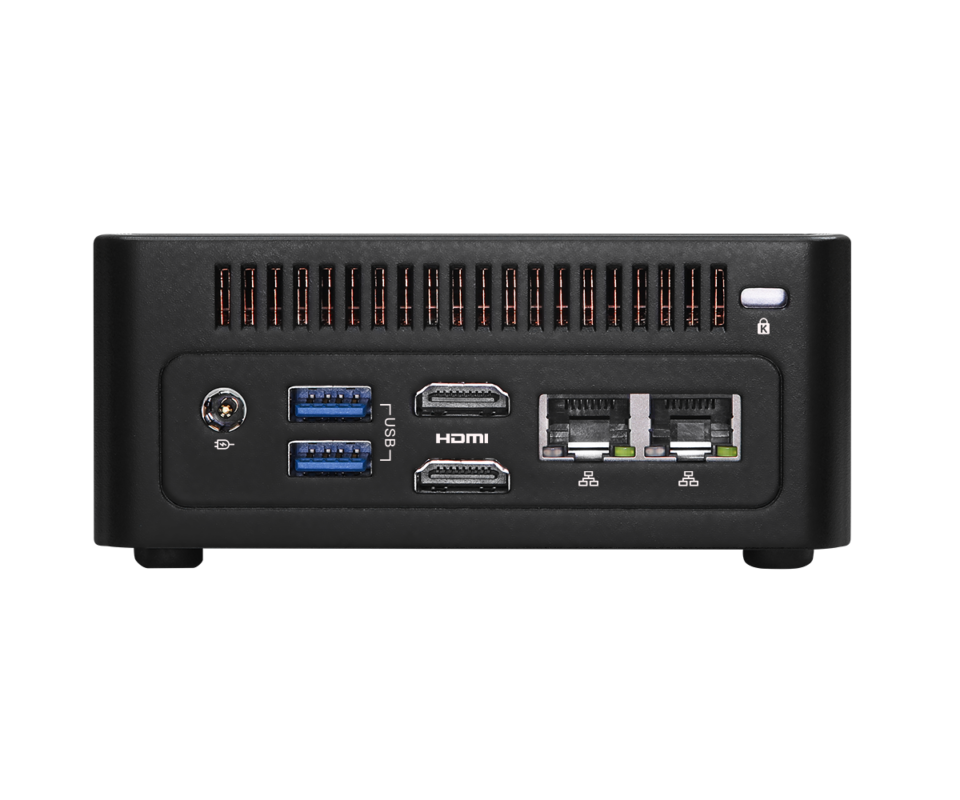

Rear I/O

HDMI
2 x HDMI 2.1
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 Gen1
DC Jack
1

Storage

M.2
1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD

Watchdog Timer

Output
From Super I/O to drag RESETCON#
Interval
256 Segments 0,1,2....255sec

Power Requirements

Input PWR
12V~24V DC-In Jack
Power On
AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready

Environment

Operating Temp
0ºC ~ 40ºC
Storage Temp
-40° C – 85° C
Operating Humidity
5% ~ 90%
Storage Humidity
5% ~ 90%

Mechanical

Mounting
VESA mount
Dimensions (L x W x H)
117.5 x 110.0 x 49mm(4.63" x 4.33" x 1.93")
Weight
Net Weight: 1kg

Others

OS Support
Windows 11
TPM
AMD FW TPM
Certifications
CE, FCC
Packing List 1
1 x 19V/120W Power Adapter (Ryzen 7)
1 x 19V/90W Power Adapter (Ryzen 5)
1 x VESA mount bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
