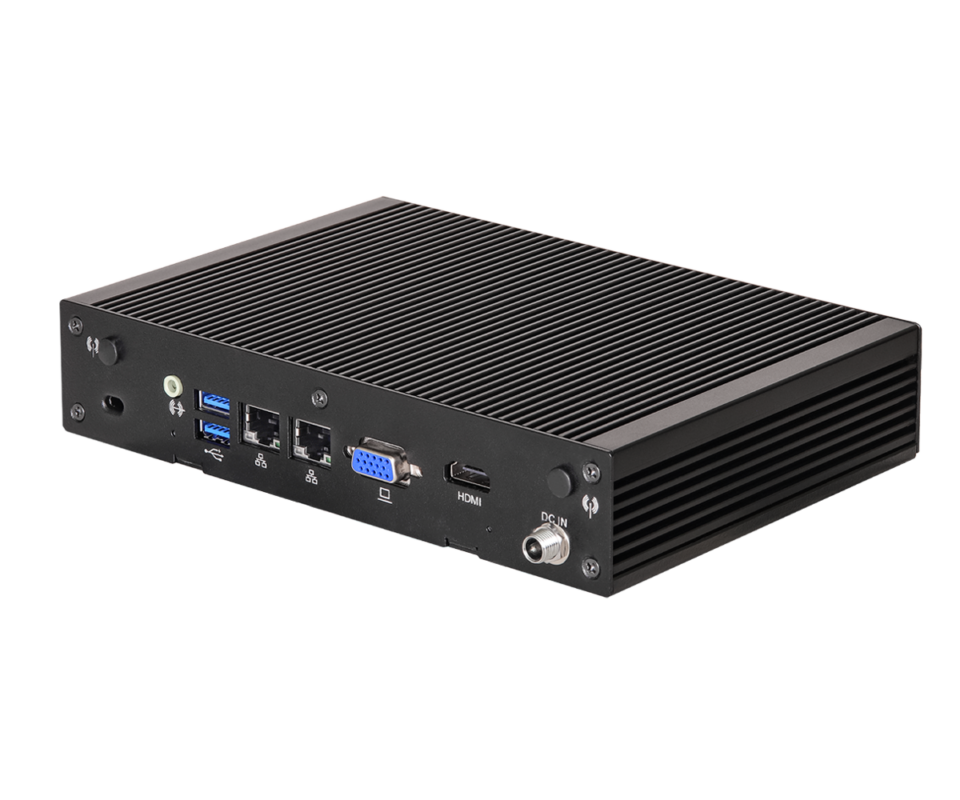

Asrock IndustrialFanless Embedded BOX PCiBOX-210D
iBOX-210D
iBOX-210D
iBOX-210D
iBOX-210D
iBOX-210D
iBOX-210D
iBOX-210D
iBOX-210D
Fanless Embedded BOX PC

iBOX-210D

  • Intel® Celeron® Processor J1900
  • 2 x 204-pin SO-DIMM up to 8GB DDR3L 1333MHz (4GB per DIMM)
  • 2 x USB 3.1 Gen1, 2 x USB 2.0, 1 x mini-PCIe/mSATA, 1 x mini-PCIe, 2 x COM, 1 x SATA3
  • 2 x Realtek 1 Gigabit LAN
  • Supports dual display, 1 x HDMI 1.2a, 1 x VGA
  • 1 x 19V/65W AC-DC power brick adapter
  • 200 x 134.5 x 39mm, Fanless Barebone
Get a Quote
Compare
Compare 0
Product Compare
Close
Overview
Specifications
Get a Quote

Processor System

CPU
Intel® Celeron® Processor J1900, QC, up to 2.42 GHz
Chipset
SoC
BIOS
AMI SPI 64 Mbit

Memory

Technology
Dual Channel DDR3L 1333 MHz
Capacity
8 GB (4GB per DIMM)
Socket
2 x 204-pin SO-DIMM

Graphics

Controller
Integrated Intel®Gen7 Intel® Graphics DX 11, OGL3.2
HDMI
HDMI 1.2a
Max resolution up to 1920 x 1200@24Hz
MultiDisplay
Dual Display

Expansion Slot

mini-PCIe
1 x Full/ Half size(Supports PCIe x1 and USB 2.0)

Audio

Interface
Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed
2 x Realtek RTL8111G-CG with 10/100/1000 Mbps
Connector
2 x RJ-45

Front I/O

USB
2 x USB 2.0

Rear I/O

HDMI
1 x HDMI 1.2a
Ethernet
2 x 1 Gigabit LAN
USB
2 x USB 3.0
DC Jack
1

Storage

SATA
1 x SATA2 (3.0Gb/s)
mSATA
1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA)

Watchdog Timer

Output
From Super I/O to drag RESETCON#
Interval
256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp
-20ºC ~ 50ºC (With extended temp. peripherals)
Storage Temp
-40° C – 85° C
Operating Humidity
10% ~ 90%
Storage Humidity
10% ~ 90%

Mechanical

Construction
Aluminum housing
Mounting
VESA mounting bracket
Dimensions (L x W x H)
200 x 134.5 x 39mm
Weight
Net Weight:1.3kg

Others

OS Support
Windows 10
Certifications
CE, FCC Class A
Packing List 1
1 x 19V/65W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
