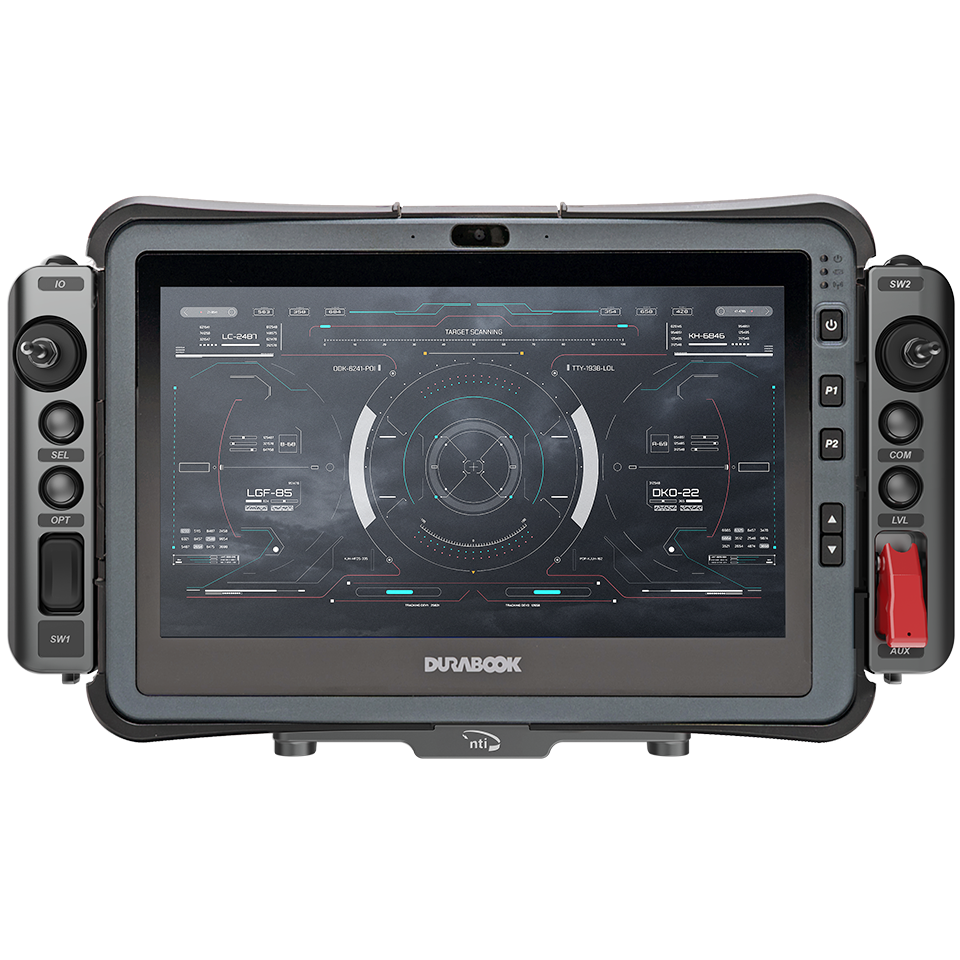

NTI GCS Dragonfly ND-11

Outline

Advanced Ground Control for Tactical and Industrial Systems.

Drone controller with a large 11.6″ display, modular inputs, and ruggedized construction, ND-11 provides unmatched control capability and operational endurance.

Get a Quote

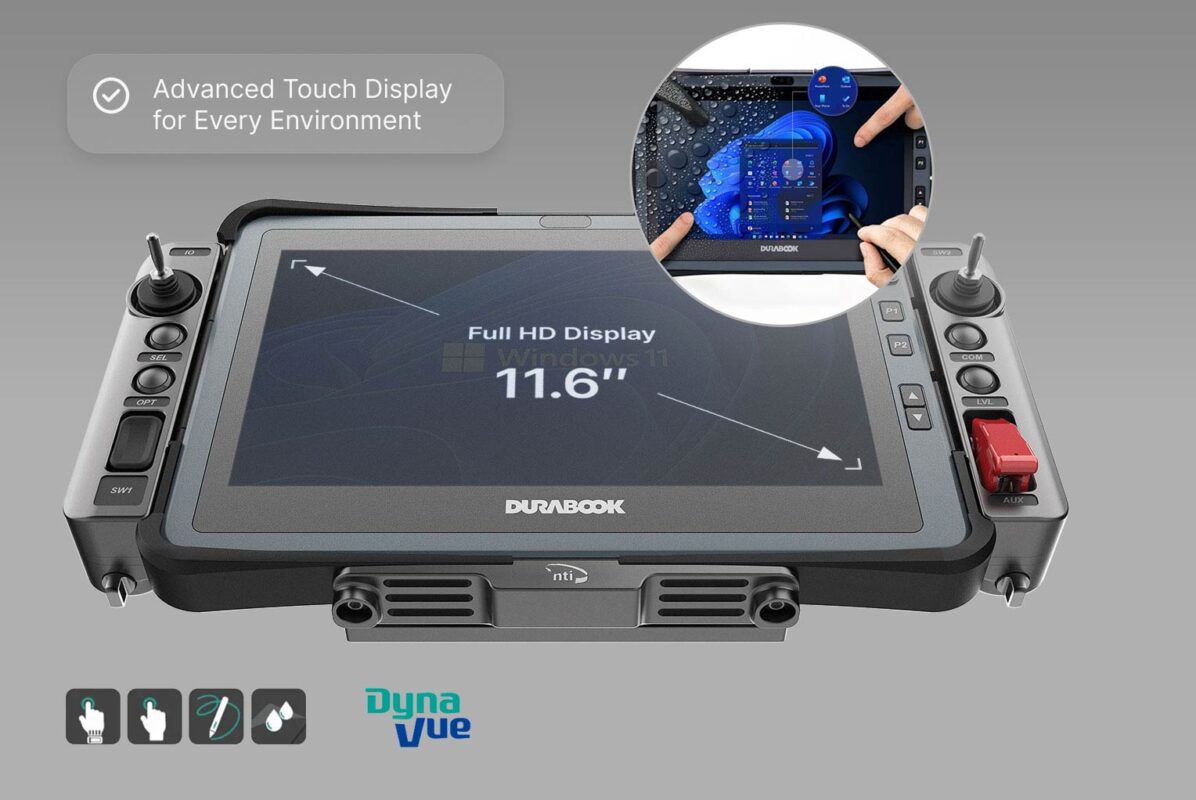

Expanded Display for Mission Awareness

The ND-11 features a large 11.6″ high-brightness display for superior visibility in daylight and low-light environments. Wide viewing angles and glove-friendly touch control deliver clear and reliable operation in every mission scenario.

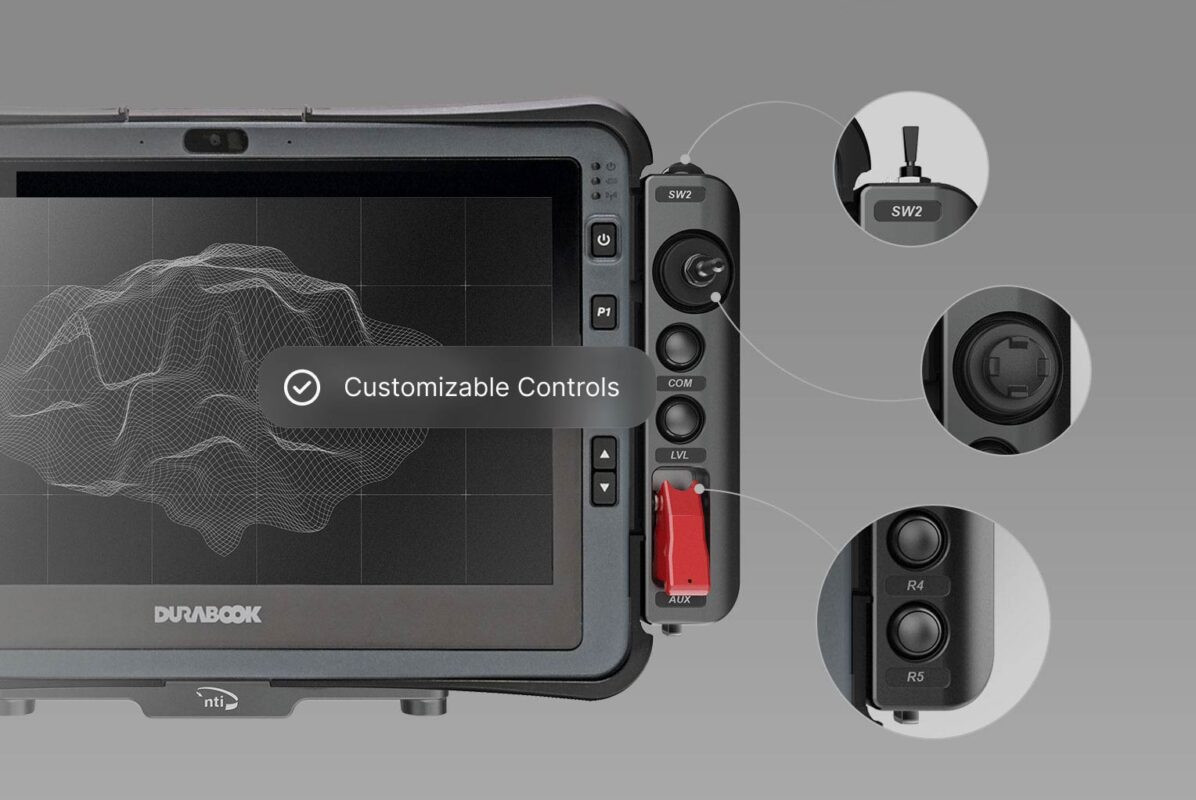

Programmable and Precise Controls

All control elements of the ND-11 are fully customizable to match mission needs and operator preferences. Clients can define their own combination of joysticks, switches, and function keys for optimal workflow and comfort.

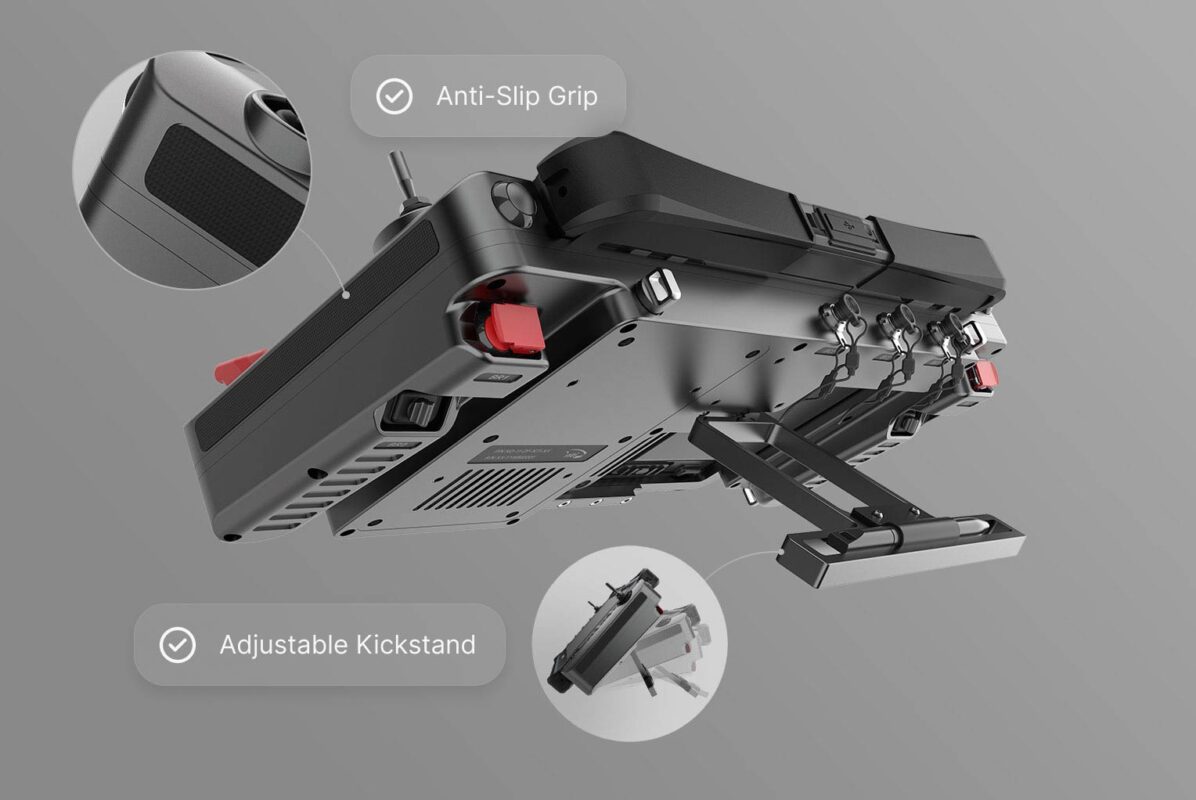

Built-In Ergonomics for Field Deployment

A rugged integrated kickstand allows flexible positioning on flat or uneven terrain. Optimized weight balance and grip points ensure comfortable handheld or stationary use during extended missions.

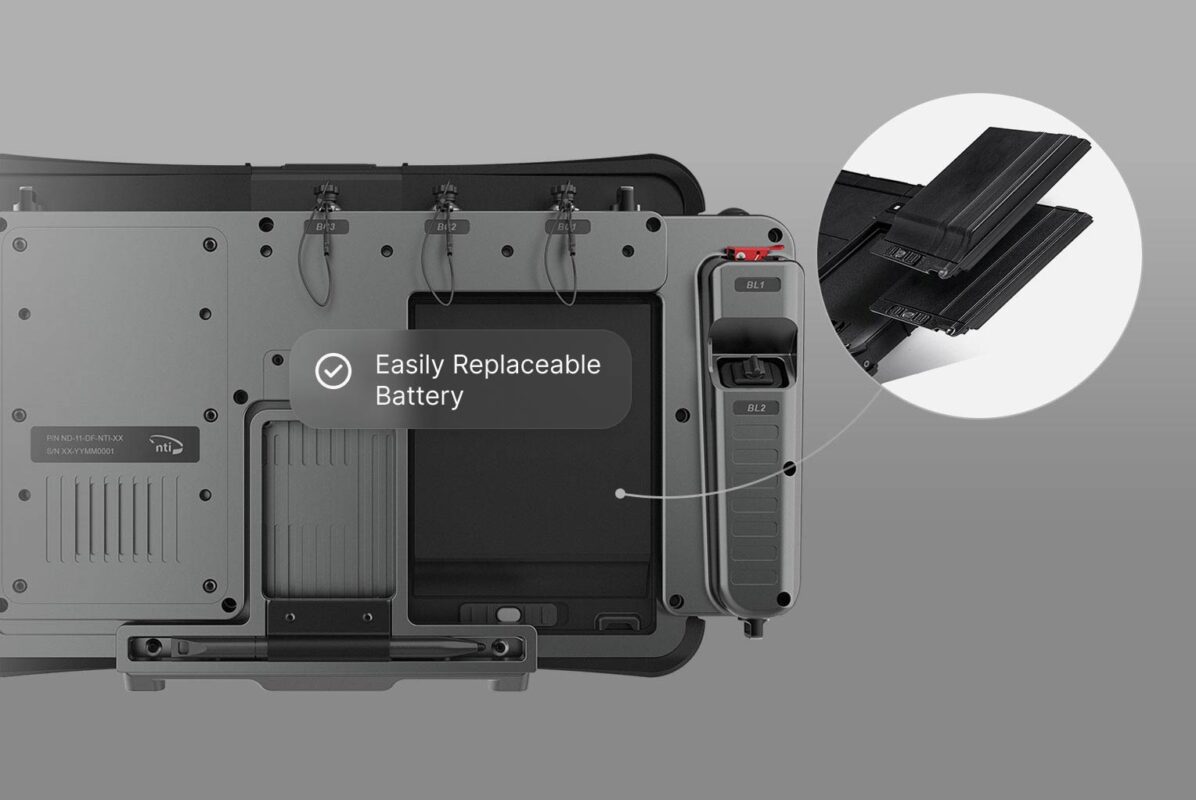

Hot-Swap Power with Continuous Operation

Hot-swappable batteries and bridge pack allow replacement without shutting down the system. Operators can change batteries in the field and maintain uninterrupted control and data integrity.

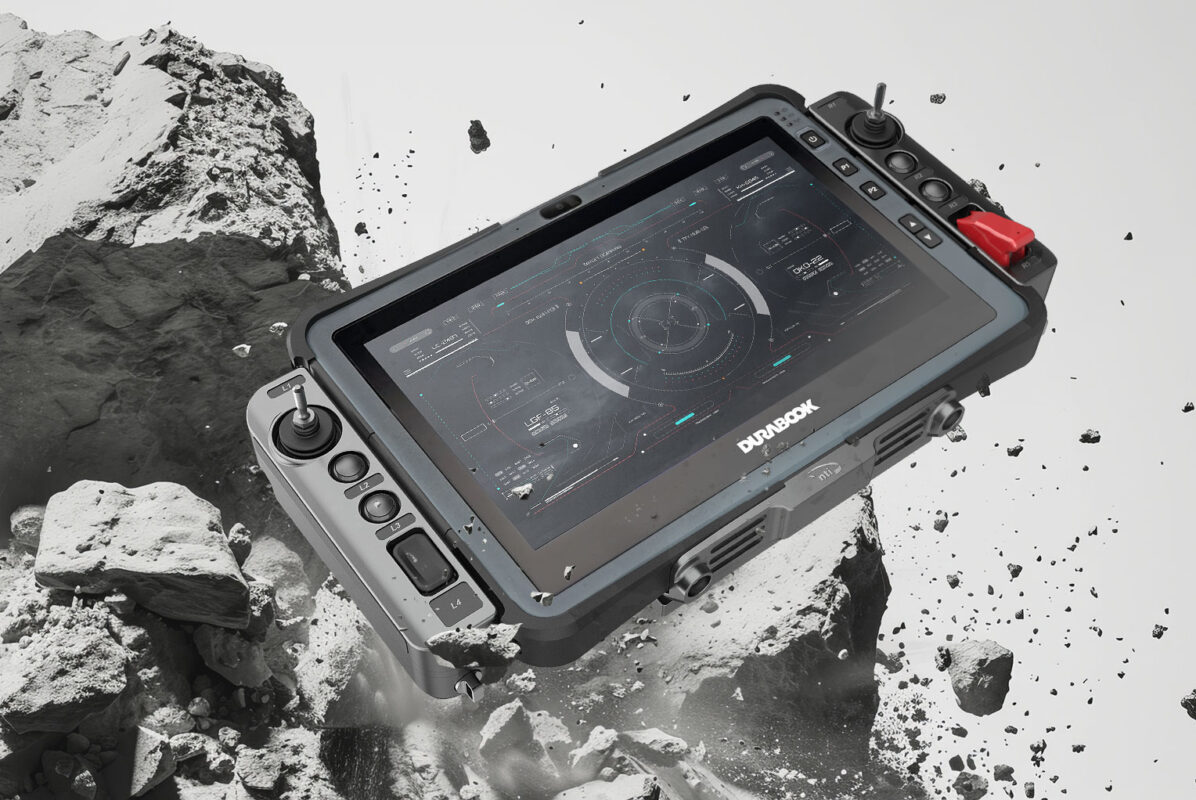

Rugged Architecture, Mission-Grade Reliability

Compliant with MIL-STD-810H and IP66, the ND-11 is engineered to withstand shock, vibration, dust, and humidity. Each unit is field-tested to guarantee performance under extreme operational conditions.

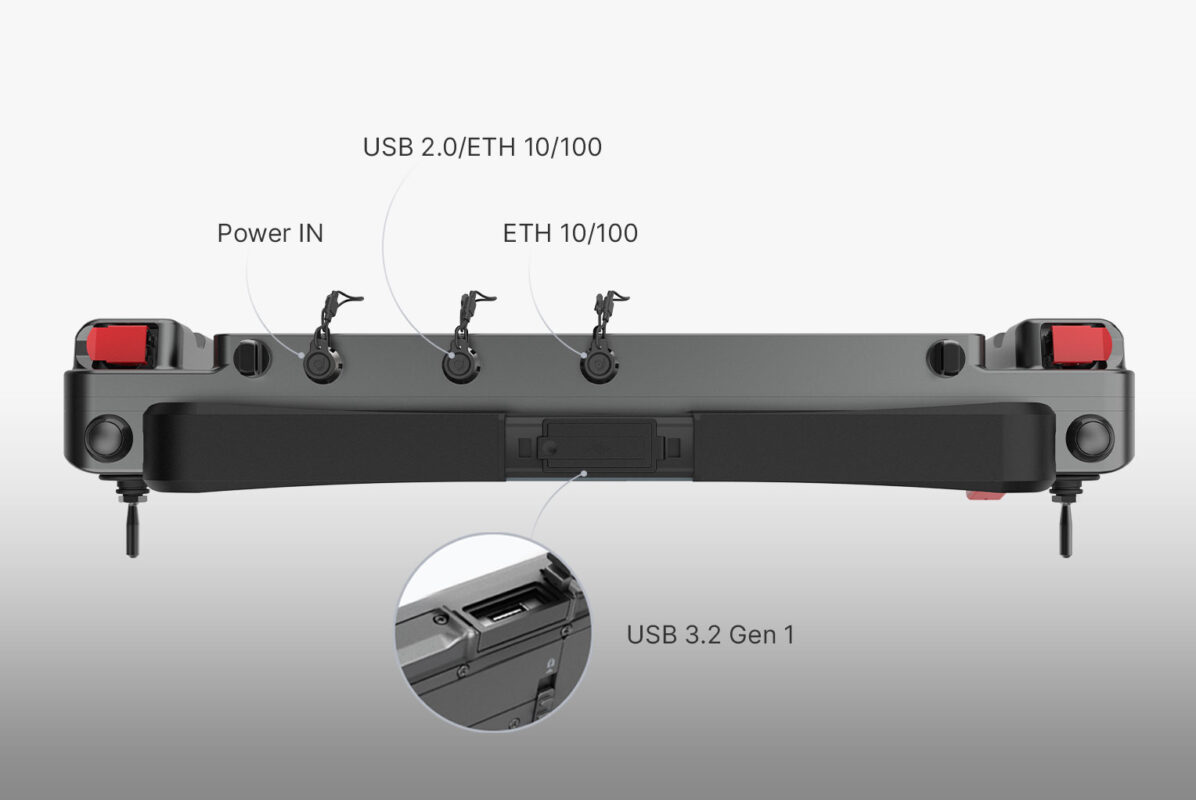

Modular Connectivity and Expansion

Multiple I/O interfaces including USB, Ethernet, and serial communication ensure seamless system integration. Customizable modules support payload control, data links, and external communication systems.

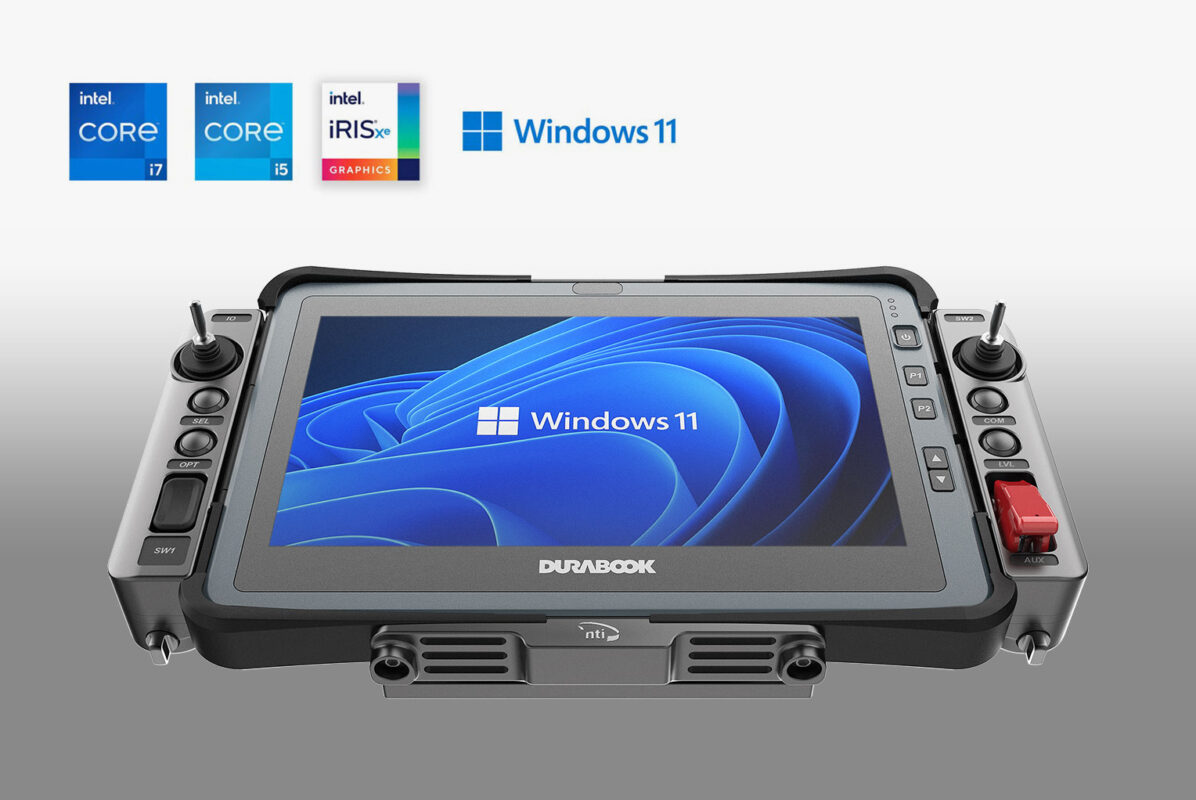

High-Performance Computing Platform

Powered by 12th Gen Intel® Core™ processors with scalable memory and NVMe SSD storage, the ND-11 delivers exceptional speed and reliability. Optimized for mission-critical software, mapping applications, and advanced control systems.

Do you have any question?

Please feel free to reach out to us. We are ready to help you with your requirements.

Why NTI Electronics?

NTI Electronics delivers advanced Ground Control Systems like the ND-11, engineered for unmatched durability and precision in challenging environments. Our commitment to quality ensures reliable performance for critical operations.

Enhanced Durability

Built to withstand extreme conditions, maintaining functionality in demanding situations.

Customizable Interface Options

Configurable features tailored to meet specific mission requirements.

Superior Connectivity

Equipped with versatile connectivity options for seamless integration with various unmanned systems.

Rugged specs

MIL-STD-810H Complies

Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, 4′ drop 26 faces

MIL-STD-461G Complies

Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility

IP 66 Complies

Optional ANSI/UL 121201, Class I, Division 2

Tech specs

Controllers

2 Axis Hall Effect Joystick x 2
2 Axis Thumbwheel Hall Effect Switch x 2

Red Push Button with Red Protective Cover x 2
6 Black Push Buttons up to x 8

3 way control switch

Optional: Toggle Switches x 3 (configurable number of positions)
Optional: Toggle Guards

Interface Specifications

Ethernet 10/100 x 2
USB 2.0 x 1
USB 3.2 Gen1 TYPE – A x 1

Additional interfaces available upon request

Connectivity Specifications

Rugged, harsh-environment connectors

J1 – Power input
J2 – Ethernet/USB
J3 – Ethernet

Additional connectors available upon request

Operating voltage

19V (DC)

Optional: Built-in DC/DC Converter with customizable input voltage

Integrated Rugged Tablet

Durabook U11I Rugged Tablet
(upon customer’s spec)

Dimension & Weight

452 mm (L) x 220 mm (W) x 104 mm (H) 2.8 kg (with a tablet)

(Dimensions and weight may vary depending on configuration)

Warranty

2-year limited warranty standard
