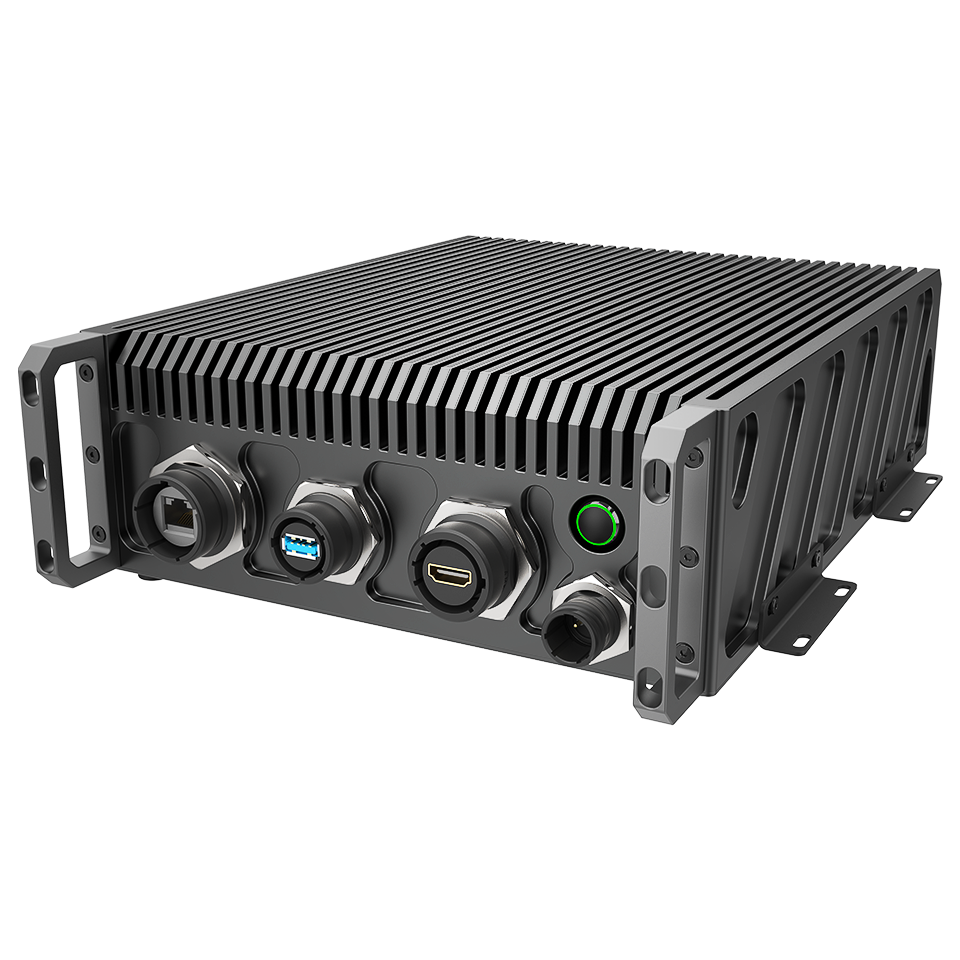

NTI Komodo C1 Rugged Computer

High-Reliability Edge Compute Platform for Mobile, Robotic, and C2 Deployments

Compact, sealed, and silent, Komodo C1 delivers mission-grade compute for vehicles, robotics, and field communications. Wide-range DC power and sealed I/O keep it running 24/7 in shock, dust, and extreme temperatures—ready to integrate and go.

Get a Quote

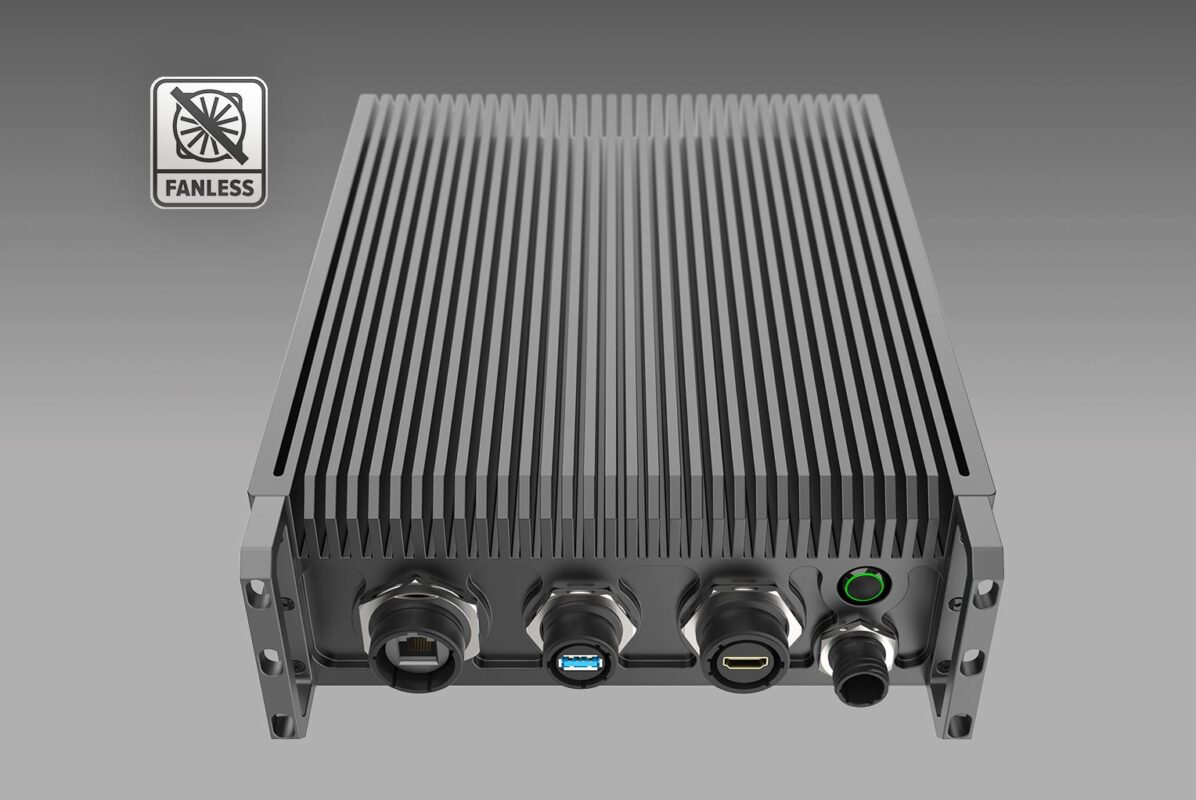

Rugged Fanless Thermal Design

A monolithic aluminum heat-sink chassis dissipates heat without moving parts. No fans means no dust ingress, less maintenance, and higher uptime. The design is tuned for continuous load in harsh conditions. Thermal margins are validated to prevent throttling under typical mission profiles.

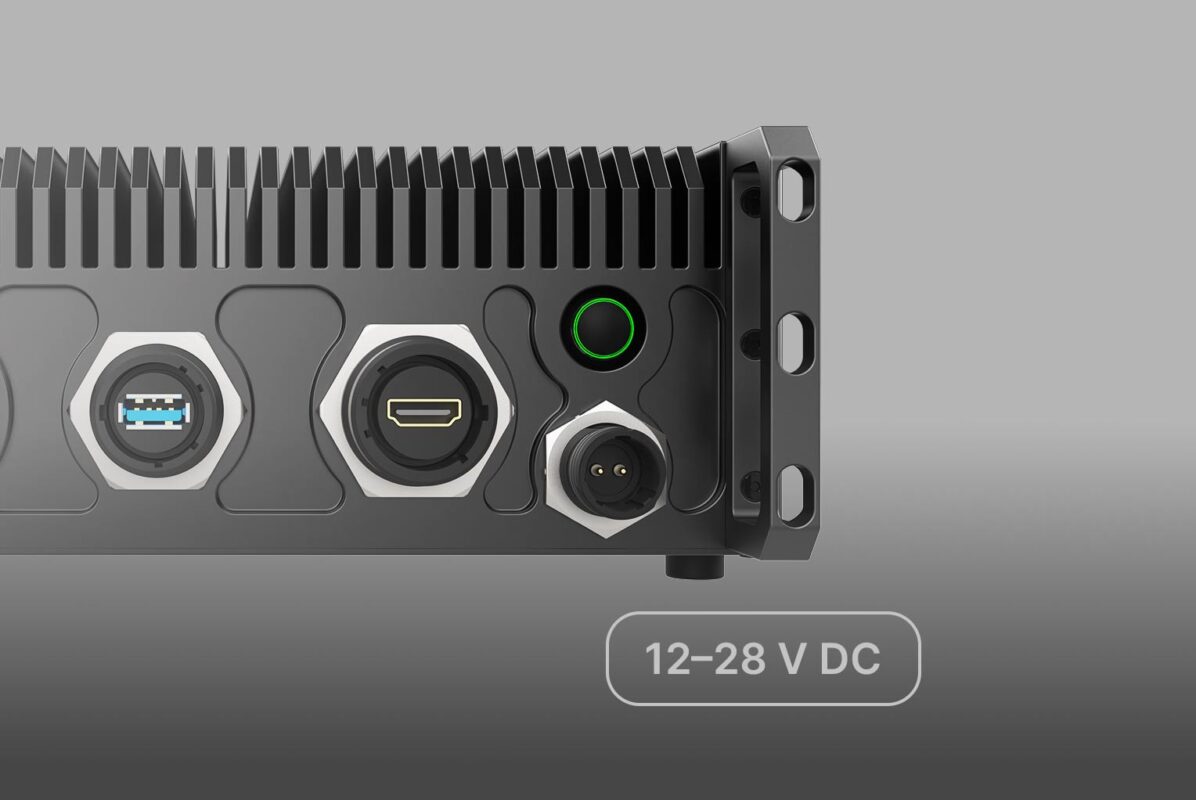

Wide-Range Power with Ignition Control

Komodo C1 accepts 12–28 V DC and tolerates common vehicle transients. Built-in protections cover surge, over/under-voltage, and reverse polarity. Input filtering and transient suppression stabilize the rail through cranking, brownouts, and ripple, preserving uptime under load. Optional high-voltage builds extend the range to 18–60 V with load-dump tolerance aligned to ISO 7637-2 / MIL-STD-1275 profiles. The result is clean, resilient power delivery for continuous 24/7 operation in harsh mobile environments.

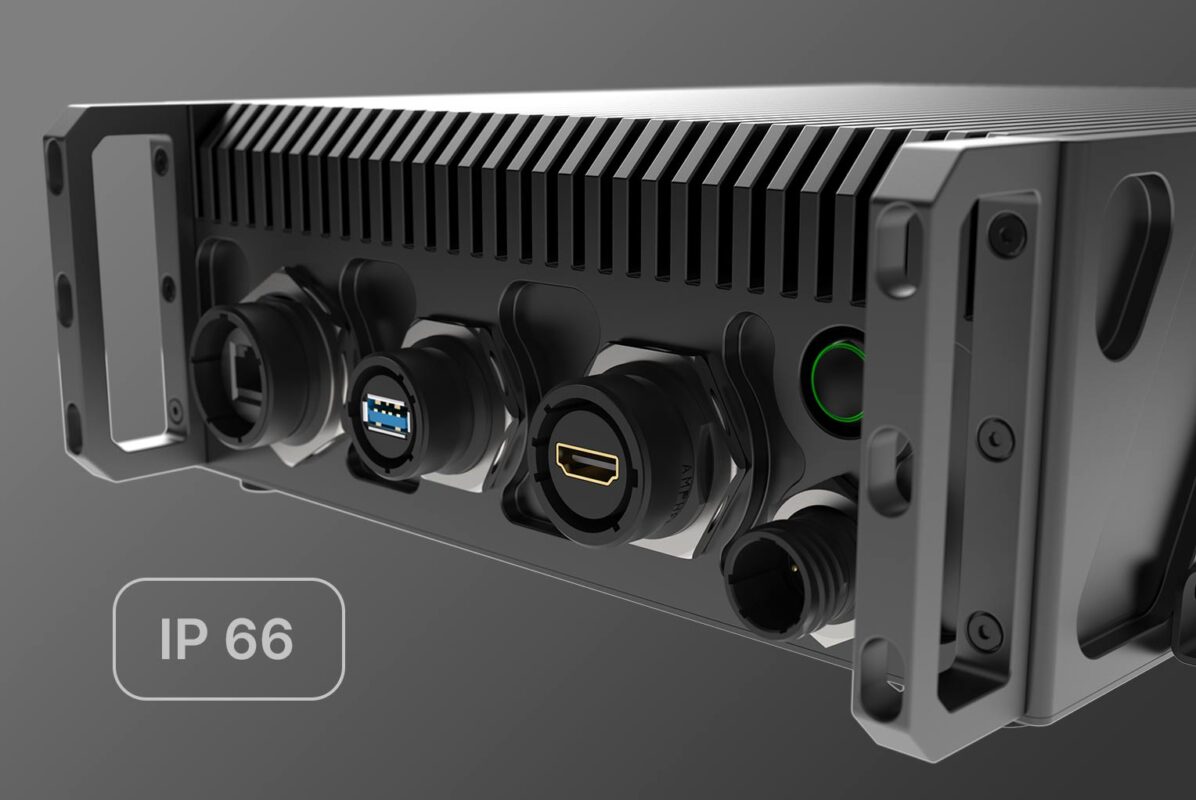

Sealed I/O and Ingress Protection

Front I/O uses sealed connectors to block dust and moisture. Gasketed interfaces and strain-relieved harnesses maintain integrity under vibration. Configurations support ingress protection up to IP66. The result is reliable connectivity that survives field abuse.

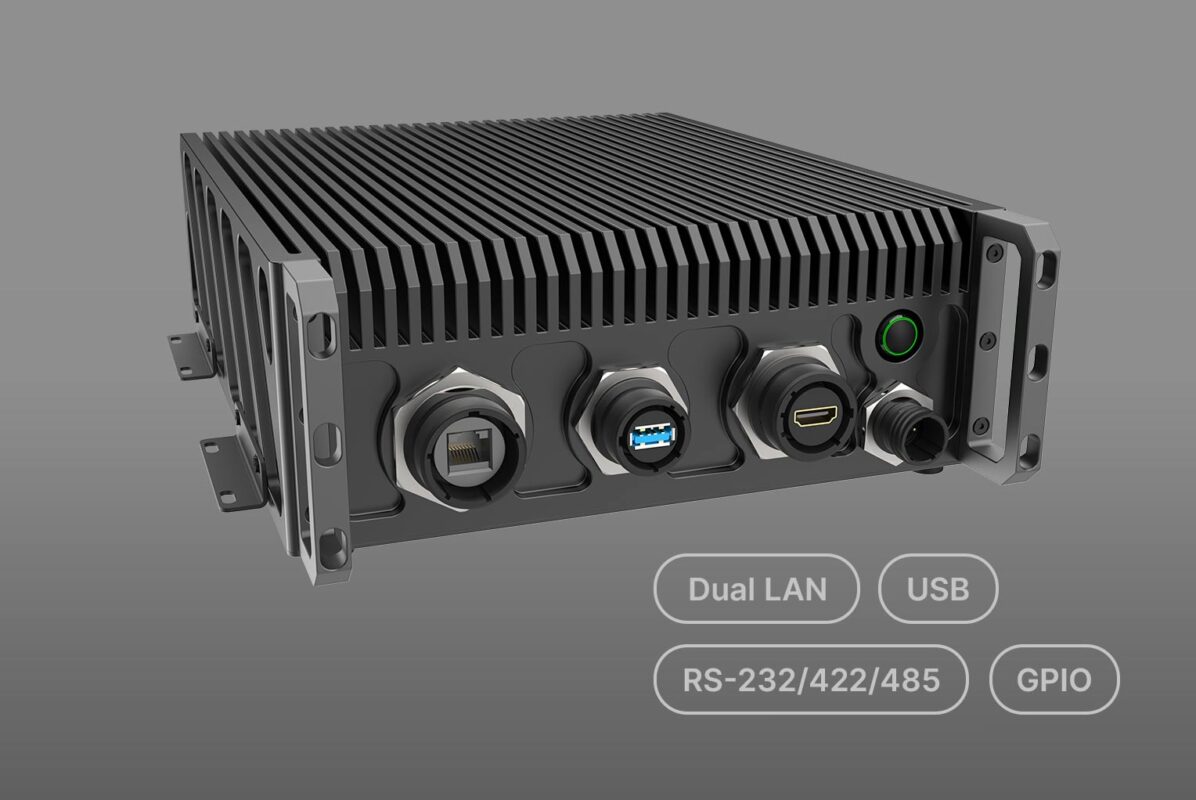

Mission-Grade Connectivity

Dual Gigabit Ethernet supports deterministic links and backhaul. USB-C and USB 3.x handle peripherals and service access. RS-232/422/485, CAN bus, and GPIO connect sensors and controllers directly. Optional PoE and timing/trigger pins simplify single-cable deployments. We configure only what your project needs—interfaces, pin-outs, and power options—at build time; no unnecessary hardware, cost, or complexity.

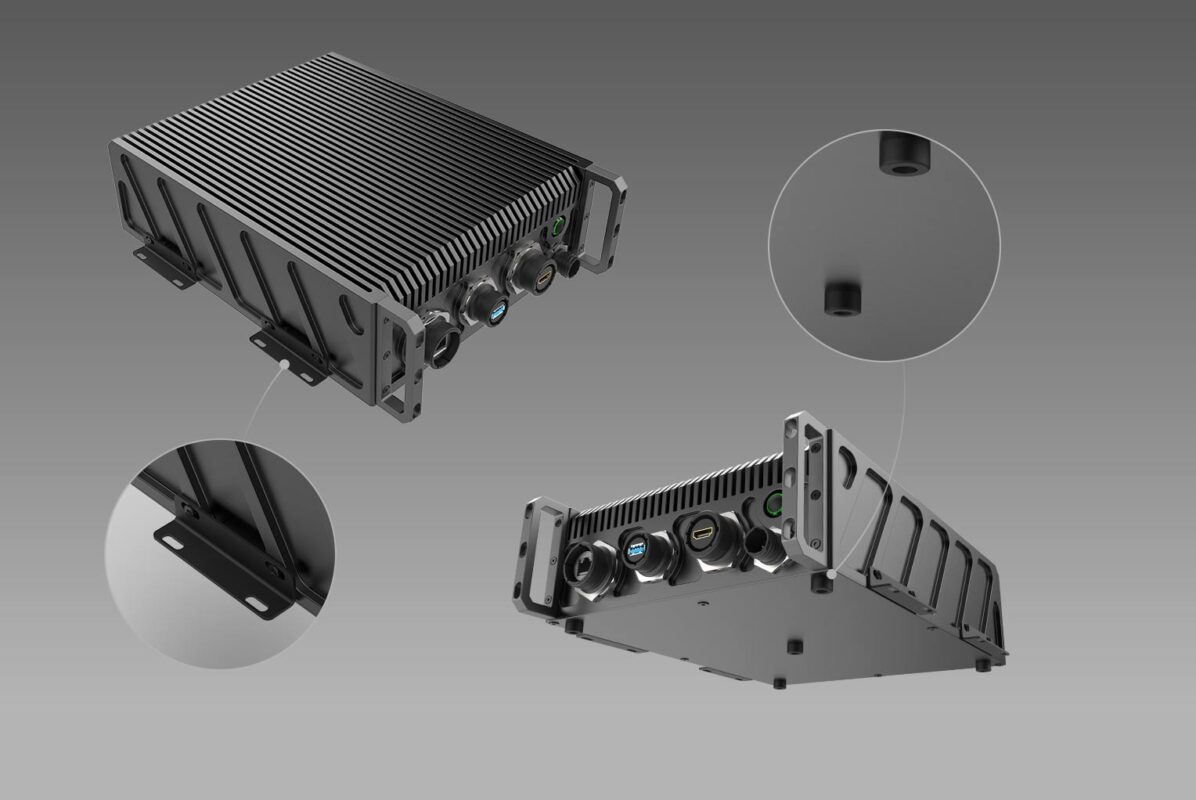

Compact Footprint, Flexible Mounting

The enclosure is small enough for tight bays and vehicle consoles. Side ears and base rails support rigid or vibration-isolated mounts. Orientation-agnostic cooling allows vertical or horizontal installation. Tool-accessible fasteners speed integration and service.

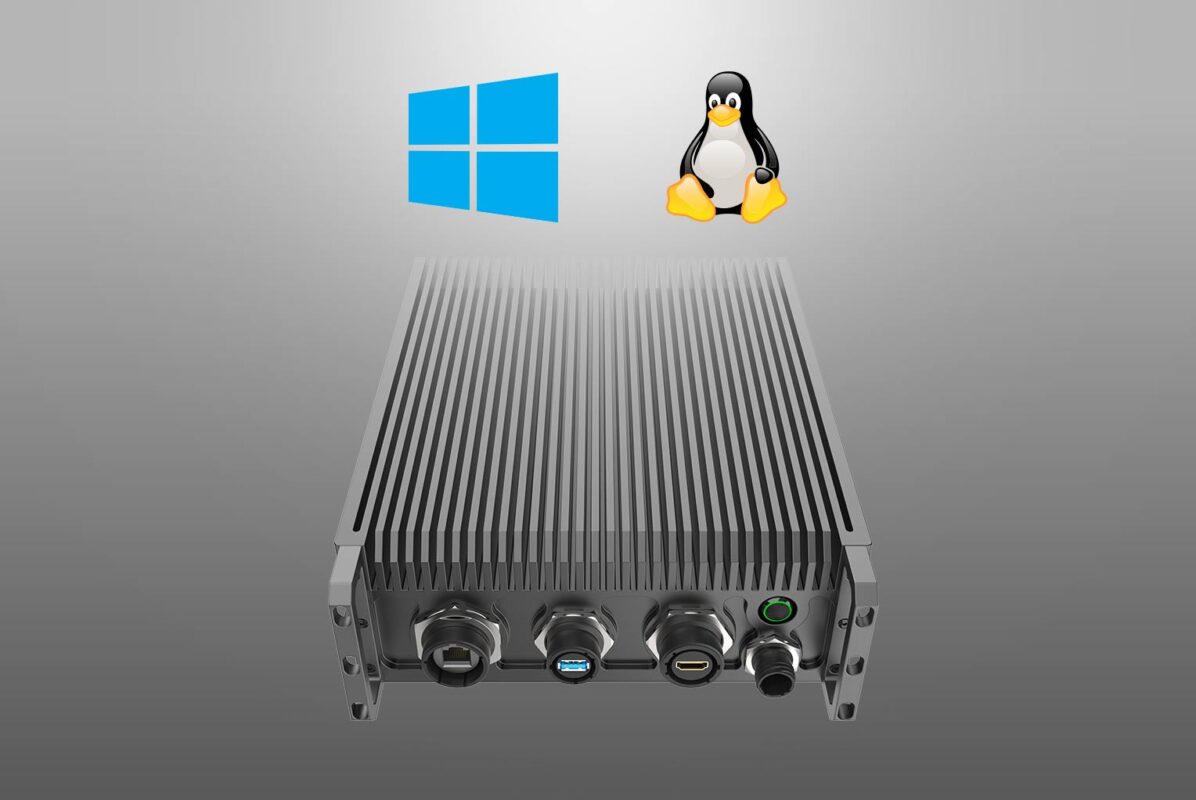

Edge-Ready Software and Security

Runs Windows 11 or Linux for easy application portability. Secure boot and TPM 2.0 protect keys and the boot chain. A watchdog timer and health telemetry keep the system recoverable. Remote management hooks support fleet monitoring and updates.

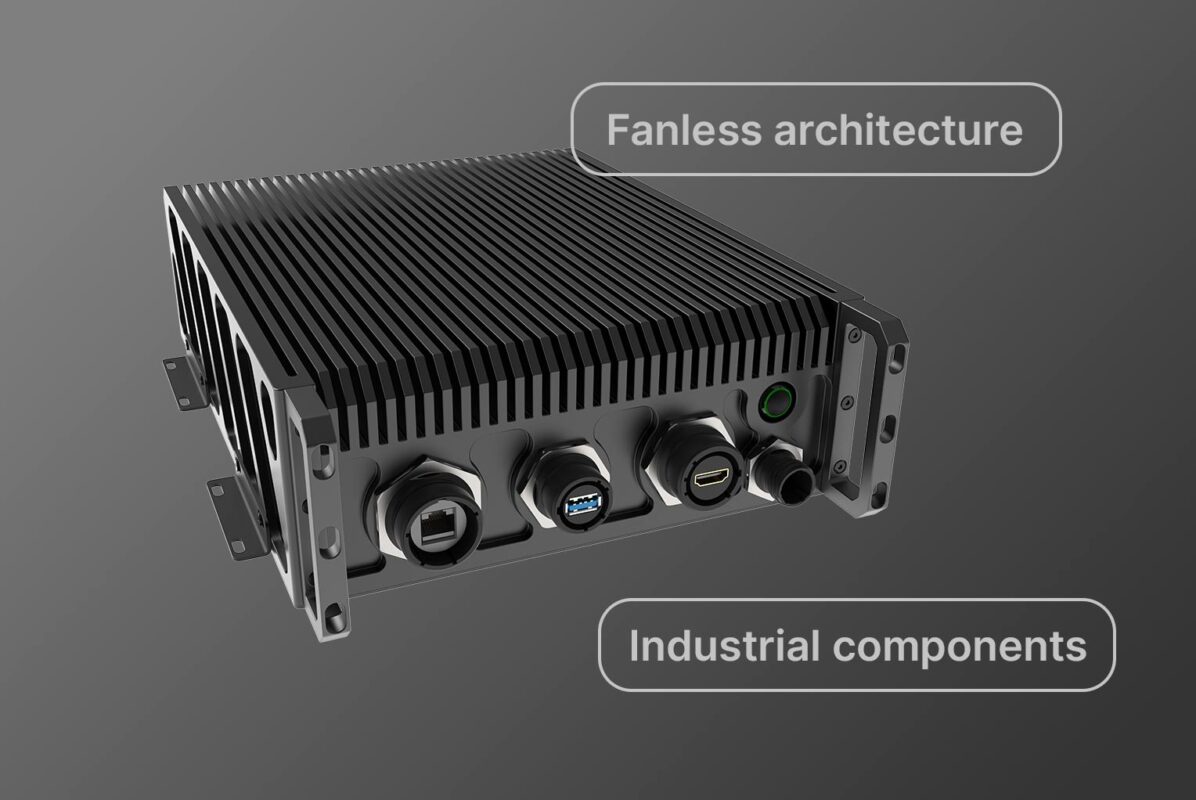

24/7 Reliability and Lifecycle

Industrial components are selected for temperature and longevity. The fanless architecture reduces wear-out mechanisms and failure points. Long-term availability eases spares planning and certification. Designed with MIL-STD-810H/461 test paths in mind to streamline projects.

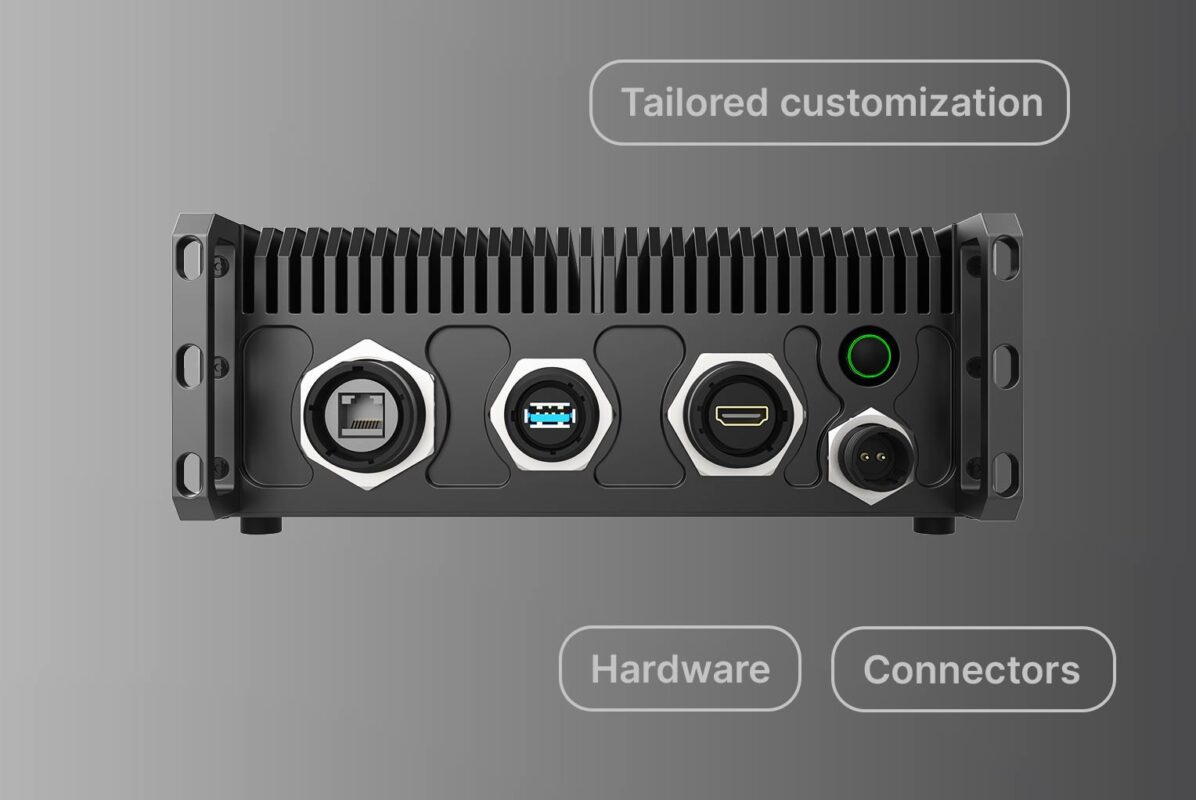

Project-Tailored Customization

We customize internals—CPU binning, memory/storage, power stage, and I/O controllers—plus firmware to match your workload. The enclosure, connector set (sealed circulars, pinout/keying), and mounting hardware (ears, rails, vibration isolators) are adapted to your platform. Cable harnesses and labeling follow your I/O map and standards (IPC/WHMA-A-620, MIL pinouts). Branding, coatings, and compliance documentation are delivered to your program requirements.

Do you have any question?

Please feel free to reach out to us. We are ready to help you with your requirements.

Why NTI Electronics?

Rugged computing and integration delivered on spec, on time—without unnecessary complexity.

Engineering-led

Our own mechanical, electronics, and cabling fast iterations, reliable results

Built to fit

We configure only what your project needs CPU/I/O, power, connectors, mounting

Ready to deploy

Labeled harness kits, install guides, and fast-turn spares for real-world deadlines

Tech specs

Processor Options

Intel® Core™ Ultra processors (Arrow Lake-S)

AMD EPYC™ 4005/4004

AMD Ryzen™ 9000/8000/7000 Series

Memory

DDR5 SO-DIMM, dual-channel, up to 96 GB

Graphics Output

Up to 4 independent displays

Intel: 2× HDMI 2.1, DP 1.4a, Type-C DP

AMD: 4× DisplayPort 1.2++

Storage

M.2 NVMe PCIe Gen4 x4 SSD

SATA III support

Networking

Intel: 2.5G + 1G LAN

AMD: dual 1G LAN

Expansion

PCIe Gen5 x16

M.2 Key M / Key E

Dual COM RS-232/422/485

Connectivity

RJ45

Ethernet

HDMI

USB

COM Ports

Power input

Optional: Sealed MIL-DTL-38999 connectors (RJ45, USB, power, and custom I/O),

Fully customizable connector layouts per customer requirements

Dimensions

330 × 240 × 88 mm

Weight

≈5.5 kg (final weight varies by configuration)

Housing

Aluminum housing with MIL-spec hardanodized finish

Operating temperature

–20°C to +60°C

Protection rating

IP66 compliant

Power Input

12–28 V DC

Additional configuration options are available, including customized interfaces, controls, and I/O layouts to match your project requirements.
